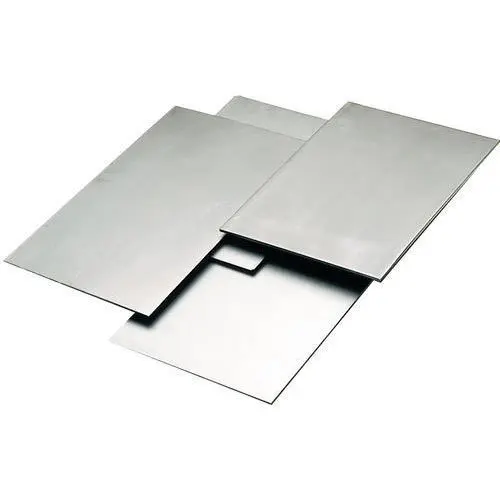

Copper Nickel Alloy Price Per Kg Monel K500 / 400 Plate / Sheet

Name: Copper Nickel Alloy Price Per Kg Monel K500 400 Plate Sheet
Brand: Victory
Price: 5 USD

Best Copper Nickel Alloy Price Per Kg Monel K500 / 400 Plate / Sheet wholesale

Brand Name : Victory

Model Number : Monel 400/K500

Certification : CE,ROHS,ISO 9001

Place of Origin : China

MOQ : 5 Kg

Price : 5 - 499 kilograms $48.00

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 300 tons per month

Delivery Time : 7 to 20 Days

Packaging Details : Standard Seaworthy Package

Product Name : Inconel Plate

Material : Ni Cr Fe

Nickel(Min : 72%

Melting Point : 1435-1446°C

Resistance (μΩ.m) : 1.5

Ultimate Strength (≥ MPa) : 538

Elongation (≥ %) : 30 %

Density : 8.28g/cm3

Powder Or Not : Not Powder

Surface : Bright color, oxidizing color, acid white

Application : Industry construction building

Size : Customized

Contact Now

Copper Nickel Alloy Price Per Kg Monel K500 / 400 Plate / Sheet

Size Range
Wire	dia 0.15-7.5mm
Plate	custom made

Strip	(0.50-2.5)*(5-180)mm

Rod/Bar	8-200mm

Monel Series

Monel 400 is copper nickel alloy,has good corrosion resistance. In salty water or seawater has excellent resistance to pitting corrosion, stress corrosion ability. Especially hydrofluoric acid resistance and resistance to the hydrochloric acid. Widely used in the chemical, oil, Marine industry.

It is widely used on many aspects,like valve and pump parts, electronic components, chemical processing equipment, gasoline and freshwater tanks, petroleum processing equipment, propeller shafts, marine fixtures and fasteners,boiler feedwater heaters and other heat exchangers.

Item	Ni	Cu	Fe	Mn	C	Si	S
Monel 400	≥63	28-34	≤2.5	≤2	≤0.3	≤0.5	≤0.025

Item	Ni	Cu	Al	Ti	Fe	Mn	S	C	Si
Monel K500	≥63	27-33	2.3-3.15	0.35-0.85	≤2	≤1.5	≤0.01	≤0.25	≤0.5

Item	Density	Melting point	Tensile Strength	Yield Strength	Elongation	HB
Monel 400	8.83 g/cm3	1300-1390℃	480	170	35%	≥331

Item	Density	Melting point	Tensile Strength	Yield Strength	Elongation
Monel K500	8.05 g/cm3	1288-1343℃	1100	790	20%

Monel 400	Bar/Rod	Forging	Pipe	Sheet/Strip	Welding Wire
Standard	ASTM B164	ASTM B564	ASTM B165	ASTM B127	ErNiCu-7

Monel K500	Bar/Rod	Forging	Pipe	Sheet/Strip	Welding Wire
Standard	ASTM B864	AMS4676	ASTM B865	ASTM B564	ErNiCu-7
